SCALA ALU

The model SCALA ALUMINIUM is a decentralized umbrella swivel arm 360 ° with structure in anthracite or white painted aluminum. Base and various components are made of galvanized and painted steel.

Articulation unit and nylon hinges, which allows a greater durability of the umbrella. Interchangeable slats and painted aluminum. Choice of different sizes and types of fabrics. The oblique pole gives character and movement in all kinds of outdoor environment.

DATA SHEET:

CATEGORY decentralized umbrella
STRUCTURE painted aluminum
BASE AND COMPONENTS galvanized and painted steel
VERTICAL POLE painted aluminum 92x92
HORIZONTAL POLE painted aluminum 92x92
SLATS (interchangeable) painted aluminum 35x20
WINDPROOF SLAT painted aluminum 35x20 adjustable
ARTICULATION UNIT nylon
HINGES nylon
OPENING / CLOSING crank with a winch
ROPE stainless steel
SCREW stainless steel
SEALS yes
SPACERSHIP SLATS yes
FABRIC Acrylic canvas, Tempotest PARA ', resinated, PVC
FIRE WINDOW yes
COLOR anthracite gray, on request white

Technical table:

scala alu tab

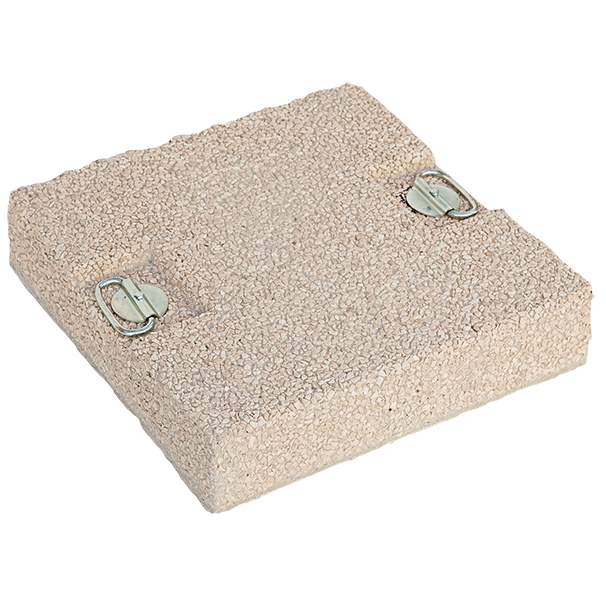

N.B. "number of counterweights" means the minimum number of bases in grit 50x50x11 from 60 kg in normal meteorological conditions.
Structure dimensions 100x100 mm.
All measurements and weights are approximate. The Costruzioni Bozzolato srl reserves the right to modify, without notice, the characteristics of its production in function of the continuous technological evolution and in the search for the continuous improvement of its products.

Available in fabric colors:

Avorio 15/93

Avorio 15/93

Black 24

Black 24

Blue 92

Blue 92

Bordeaux 73

Bordeaux 73

Ecrù 151/15

Ecrù 151/15

Yellow 12/15

Yellow 12/15

Green 5

Green 5

Grey 97/15

Grey 97/15

Melange 106

Melange 106

Ruggine 426

Ruggine 426

Sabbia 14

Sabbia 14

Terra 926

Terra 926

White 15

White 15

This email address is being protected from spambots. You need JavaScript enabled to view it.
to request information on this model write to: This email address is being protected from spambots. You need JavaScript enabled to view it.

pdf icondownload our updated assembly sheet and browse it directly on your computer.
DOWNLOAD
